Waterstop RX

An active sodium bentonite based waterstop that is designed to replace conventional passive PVC dumbbell waterstops, thus eliminating the requirement of split-forming and product seam welding.

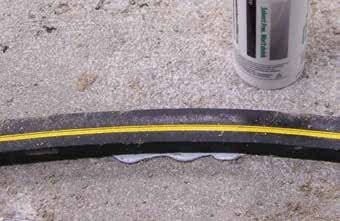

Waterstop-RX is a flexible strip concrete construction joint waterstop that provides a permanent seal by expanding upon contact with water. Waterstop-RX is an active sodium bentonite based waterstop that is designed to replace conventional passive PVC dumbbell waterstops, thus eliminating the requirement of split-forming and product seam welding.

Waterstop-RX is manufactured in lightweight, flexible coils that can be installed in both hot and cold weather. The product is adhered to concrete, steel, and PVC (pipes) with CETSEAL; at or exceeding the required minimum distance from the exterior concrete surface.

The key to Waterstop-RX is sodium bentonite. Sodium bentonite swells when in contact with water, forming an impermeable barrier. This swelling property allows Waterstop-RX to form a permanent pressure seal within the concrete joint, thus eliminating water migration over or along the waterstop. In addition to forming a positive pressure seal, the product’s expansion properties allow it to seal small cracks and void areas. Waterstop-RX has been successfully tested by independent testing firms to over 60 meters (200 feet) of hydrostatic water pressure under both continuous emersion and wet/dry cycling.

General Applications

Waterstop-RX applications include both vertical and horizontal concrete construction joints, new-to-existing construction, irregular surfaces, and around throughwall penetrations, such as plumbing and electrical conduit. Waterstop-RX is designed for both hydrostatic and non-hydrostatic conditions. Waterstop-RX is not designed, nor intended to function as an expansion joint sealant. Contact manufacturer for precast concrete applications, technical information and approval.

Waterstop-RX is designed for structural concrete with a minimum of 3000 psi. 101 and 101T, require a minimum 75 mm (3”) of concrete coverage. Waterstop-RX 102 requires a minimum concrete coverage of 50 mm (2”).

Product specification sheet

Manufacturer

Amcol Australia

Since 1971 AMCOL Australia Pty Ltd (formerly known as Volclay International Pty) have been breaking new ground throughout the Australian bentonite and minerals supply industry. The Volclay brand has grown to become the benchmark for high quality bentonite in Australia
